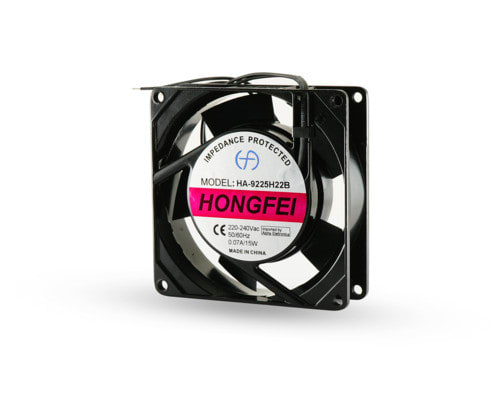

ALPHA ELETTRONICA SR - ALPFNHA-9225H22B VENTOLA AC 92X92X25 230VAC CUSCINETTI... - FNHA-9225H22B

General characteristics
Rotational rate/speed: 2400RPM
Air Flow metric: 0.71, (25.1)
Static pressure: 4, (0.16)
Noise: 29.2dB
Bearings: Ball Bearing
Fan type: Axial
Lock sensor: No

Electrical characteristics
Voltage type: AC
AC rated voltage: 220Vac (200-240Vac)
Rated current: 0.07A
Power consumption: 15W

Caratteristiche Meccaniche
Dimensions (LxWxH): 92 x 92 x 25mm
Weight: 0.27kg
Fan material: PBT
Enclosure material: Aluminum
Color: Black
Conductors: 2-wire
Connections: free wires
Cable length: 0.28m

Thermal characteristics
Flamability rating: 94V-0
Working temperature: -25/70°C
Storage temperature: -40/75°C
