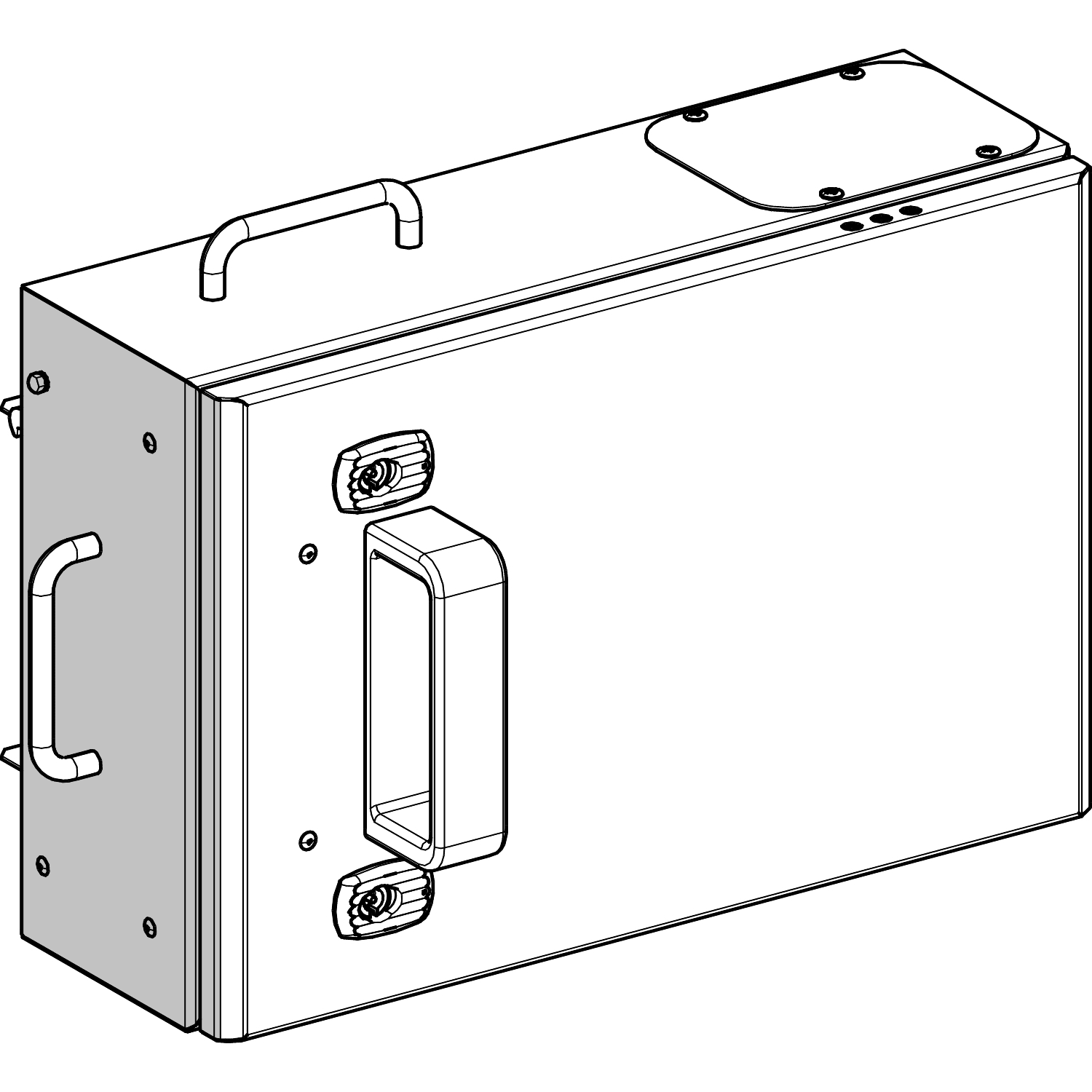

SCHNEIDER ELECTRIC - SNRKSB160SE4 KS Abgangskasten,160A, 3L+N+PE, fur Sich - KSB160SE4
Melden Sie sich an, um Preise und Verfügbarkeit anzuzeigen
Haupteigenschaften
Anzahl der Leiter (ohne Erde) - 4
Polzahl - 5
Bemessungsstrom AC 50 Hz - 160 A
Bemessungsspannung AC 50 Hz - 400...400 V
Phasenselektion - nein
Packung
1 ST
Produktserien
EAN
3606480005701
Artikelnummer
SNRKSB160SE4
Herstellernummer
KSB160SE4
Hersteller
SNR
Anzahl der Leiter (ohne Erde):
4
Polzahl:
5
Bemessungsstrom AC 50 Hz:
160 A
Bemessungsspannung AC 50 Hz:
400...400 V
Phasenselektion:
nein
Mit Arretierung:
ja
Abgangsart:
Leitungseinführung
Anzahl der CEE-Steckdosen (IEC 60309):
0
Anzahl der sonstigen Steckdosen:
0
Canalis tap-off unit for KT and KS. It's applied to medium power distribution and TT, IT and TN-S earthing system. The operational voltage is from 230VAC 50/60Hz to 690VAC 50/60Hz. The rated operational current is 160A at 35 ℃. Mounting by Plug-in with fixed polarity with white RAL 9001 surface treatment and whose busbar trunking polarity is 3L + N + PE. It provided protection for size 00 fuses (Fuse to be ordered separately). It provided tap-off unit disconnection by right opening the door. Canalis KS busbar trunking compatibility with plug-in outlets, Canalis KT busbar trunking compatibility with KS type plug-in outlets. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 61439-1and IEC 61439-6. It is also compliant with Green Premium (RoHS/REACH).
