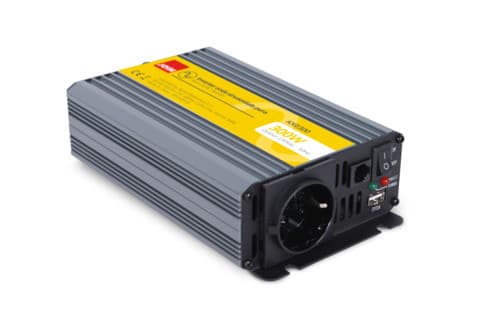

ALPHA ELETTRONICA SR - ALPKX0300/12 INVERTER ONDA PURA 300W 12V - KX0300/12
Accedi per visualizzare prezzi e disponibilità
Caratteristiche principali
Grado di efficacia max. - 92 %
Peso - 1 kg
Larghezza - 119.8 mm
Altezza - 53.8 mm
Profondità - 208.3 mm
Confezione
1 PZ
EAN
8017443689886
Codice prodotto
ALPKX0300/12
Cod. produttore
KX0300/12
Produttore
ALP
Grado di efficacia max.:
92 %
Peso:
1 kg
Larghezza:
119.8 mm
Altezza:
53.8 mm
Profondità:
208.3 mm
General Characteristics
Inverter Type: Off-Grid
Cooling: Forced Convection - Automatic fan
Additional features: RJ12 on-off switch port
Control Interface: Tasti fisici, RJ12
Inverter Features
Waveform Output: Pure sine
Frequency: 50Hz
Wave Distortion Thd: <3%
Input Current: 29A
Input Voltage: 12Vdc
Output Voltage: 230Vac
Output voltage configuration: fissa
Output frequency configuration: fissa
Under-voltage protection: 10±0,5Vdc
Peak output power: 600W
Rated Power Output: 300W
Maximum Efficiency: 92%
Minimum Battery Capacity: >60Ah
Stand By No-Load Consumption: <0.5A
Soft Start: yes
Protections: Low voltage, Input overvoltage, Overload, Overtemperature, Short circuit, Reverse polarity
Restart function: Overload (manual), High volt battery (automatic), Overvoltage (automatic), Overtemperature (automatic)
Fuse: external
Fuse Features: 2x 20A
Mechanical Characteristics
Dimensions: 208.3mm x 119.8mm x 53.8mm
Weight: 1Kg
Protection: IP20
Installation: wall, landscape
Noise level: 45dB
Thermal Features
Working Temperature: -10 / 40°C
Humidity: 5 ÷ 90%
Connections
Remote Control: optional
Input Cable: Una coppia di cavi rosso-nero 4mm²/11AWG 1m
Input Connections: screw terminals for eyelets
Output Connections: 1 USB-A 5V 2A socket
