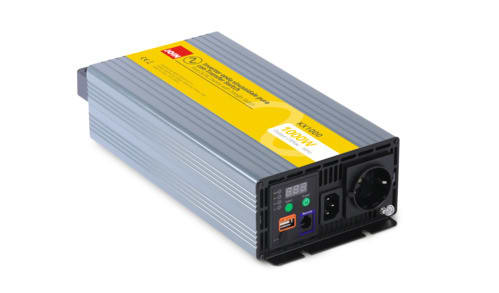

ALPHA ELETTRONICA SR - ALPKX1000/24 INVERTER ONDA PURA 1000W 24V - CON BY... - KX1000/24

General Characteristics
Inverter Type: with bypass 230V
Operating Mode: Priorities DC
Cooling: Forced Convection - Automatic fan
Additional features: Energy saving mode, Ignition start port
Control Interface: Tasti fisici, Display remoto opzionale, RJ12

Inverter Features
Waveform Output: Pure sine
Frequency: 50Hz
Wave Distortion Thd: <3%
Max AC input current: 4.5A
Input Current: 47A
Input Voltage: 24Vdc
Output Voltage: 230Vac
Output voltage configuration: selezionabile 220-230-240Vac
Output frequency configuration: selezionabile 50-60Hz
Under-voltage protection: 21±0,3Vdc
Peak output power: 2000W
Rated Power Output: 1000W
Maximum Efficiency: 91%
Minimum Battery Capacity: >60Ah
Stand By No-Load Consumption: <0.5A
Bypass relay current: 16A
Bypass relay current load type: resistive
Minimum Operative Load: 20W
Selectable low voltage protection setting: 21/21,6/22,6/23,6Vdc
Soft Start: yes
Transfer Switch: Automatic
Switching Time: 30ms
Protections: Low voltage, Short circuit, Reverse polarity, Overload, Overtemperature, Input overvoltage
Restart function: Overload (manual), Overtemperature (manual), Overvoltage (automatic), High volt battery (automatic)
Fuse: internal
Fuse Features: 3x 30A

Mechanical Characteristics
Dimensions: 331.2mm x 150.1mm x 77.6mm
Weight: 2.6Kg
Protection: IP20
Installation: wall, landscape
Noise level: 62dB

Thermal Features
Working Temperature: -10 / 40°C
Humidity: 5 ÷ 90%

Connections
Remote Control: optional
Input Cable: Una coppia di cavi rosso-nero 16mm²/5AWG 1m
Input Connections: DC screw terminals, IEC320 C14
Output Connections: 1 USB-A 5V 2,1A socket
